Build a Handlebar Wire Rack for Your Bike Bag

Finished DIY handlebar wire rack holding a brown Goss canvas bag on a road bike

handlebar-wire-rack-guide.pdf

Download PDF • 4.71MB

Intro

This rack gives you a clean, lightweight way to carry a handlebar bag on a drop-bar or flat-bar bike. The design holds the bag out in front of the handlebars so you can still grip the bars normally, and the retention spurs at the tips keep the bag locked in place over rough terrain. The whole thing is bent from a single 3 ft length of 1/4" aluminum rod and takes about an hour to make with basic shop tools.

Materials and Tools

Materials

- 1/4" aluminum round rod, 3 ft (Hillman or equivalent)

- 1/4" i.d. fuel line hose, 8" section

Tools

- Bench vise

- Two 1/4" steel rods (bending jig pins)

- Marker or paint pen

- Flat file

- Tape measure or ruler

Step-By-Step Instructions

Step 1: Gather Materials & Prep the Rod

Slide the 8" section of 1/4" i.d. fuel line hose over the center of the aluminum rod and center it. The hose protects the stem from scratching and acts as a grip pad where the rack contacts the bike. The rod should extend equally on both sides of the hose.

Aluminum rod with fuel line hose centered, laid out with layout tools

8 inch section of black fuel line hose measured against a tape measure

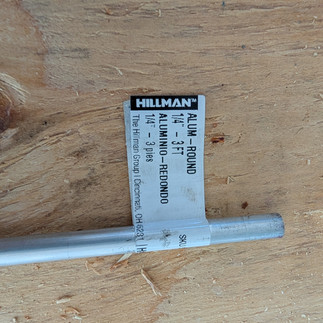

Hillman 1/4 inch by 3 foot aluminum round rod with product label

Step 2: Mark the Handlebar Bend Locations

Center the rod under the bike stem and fold it in half around the stem. This sets the center bend angle to match your stem diameter. With the rod draped over the handlebars in position, mark the rod at each handlebar — this is where the next bends will go.

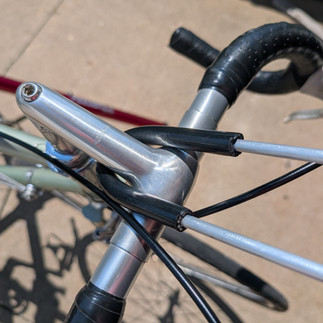

Aluminum rod looped around the bike stem, viewed from above

Top-down view of the rod centered across the handlebar clamp

Step 3: Bend the Center Loop

Clamp the rod in the vise at the center mark (the hose section goes in the vise jaw). Bend both halves of the rod down past 90 degrees — the center loop should hook under the stem and the two arms should come up and over the handlebars, pointing downward. Test fit on the bike and adjust the bend angle until the arms point straight down past the bars. Bend further if needed.

Aluminum rod clamped in a vise at the center mark, ready to bend

Both rod arms bent down past 90 degrees around the vise

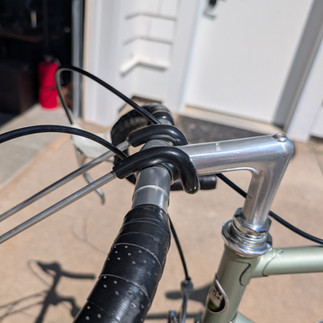

Center loop seated on the bike stem with arms over the handlebars

Step 4: Mark & Make the Handlebar Offset Bends

With the rack on the bike, mark each arm about 3/4" outboard of the handlebar. These bends angle the arms slightly upward so the bag supports clear the bars. Build a two-pin bending jig by clamping two 1/4" steel rods in the vise about 1/2" apart. Use the jig to make a gentle upward bend at each mark. Test fit and compare both arms — adjust until the bends are even and the supports sit level.

Speed square used to mark the offset bend location on the bike

Two-pin bending jig made from steel rods clamped in a vise

Using the two-pin jig to bend the rack arm upward

Test fitting the rack on the bike with arms clearing the handlebars

Step 5: Bend the Outward-Pointing Tips

Using the same two-pin jig, make two right-angle bends at the ends of each arm — perpendicular to the previous bends, pointing outward away from the bike centerline. These form the horizontal supports that the bag rests on.

Using the jig to make an outward right-angle bend at the arm tip

Both rack arms bent outward, forming the bag support profile

Step 6: Bend the Bag Support Arms & Check Spacing

Make one more right-angle bend on each arm, pointing upward, to complete the bag support shape. Check the spacing between the two outer support tips — for the handlebar bag pattern, these need to be 10.5" apart. Adjust by tweaking the bends until spacing is even and symmetric.

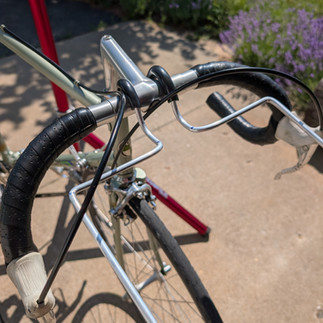

Rack installed on the bike with bag supports spaced in front of the bars

Finished wire rack held up showing the full bent shape off the bike

Step 7: Add Retention Spurs & File the Ends

Measure 4" from the last bend on each arm and make a small right-angle bend upward. Cut the excess rod, leaving only 1/2" jutting upward. This short spur acts as a retention hook that keeps the bag from sliding off the supports. Once cut, clamp each end in the vise and use a flat file to smooth any sharp edges so the bag slides on cleanly without catching.

Bending the short upward retention spur in the vise

Side view of the finished arm showing the retention spur profile, cutting excess

Filing the cut end of the aluminum rod smooth

Finished!

Slide the rack onto your bike — center loop under the stem, arms over the handlebars. No hardware required. Load your handlebar bag onto the supports and you're ready to ride.
